Product
Navajyothi Air Flow
Brand
NJ-GI Perforation Grille
Application
Supply and return air distribution for HVAC ventilation and air-conditioning systems.
Product Description

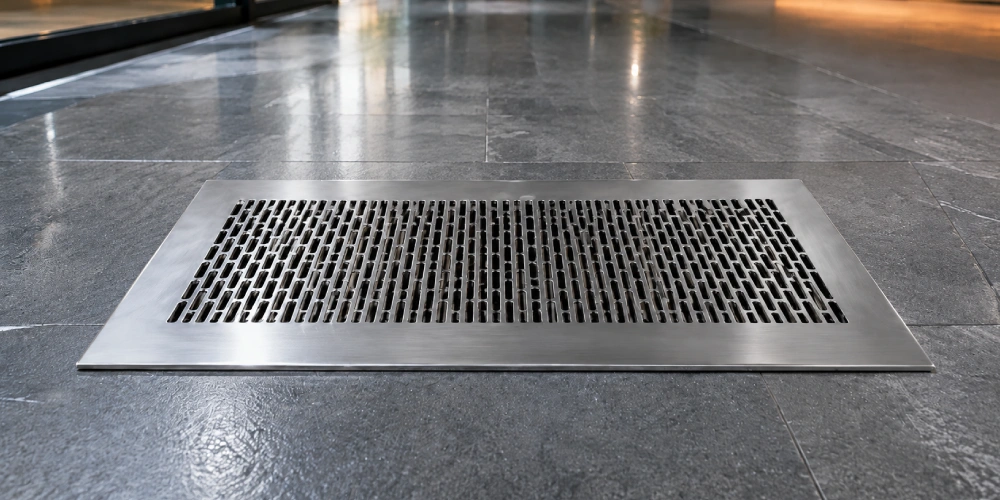

Galvanized Iron (GI) Perforated Grilles are designed for supply, return, and exhaust air applications in HVAC systems. Manufactured from high-quality Galvanized Iron (GI) sheets with precision-perforated openings, these grilles provide uniform air distribution while maintaining a clean architectural appearance.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Name | Galvanized Iron (GI) Perforated Grille |
| Material | Galvanized Iron (GI) Sheet |
| Sheet Thickness | 1.0 mm, 1.2 mm, 1.6 mm (Standard) |
| Face Area | Round/ Capsule Perforation type |
| Standard Hole Diameter | Ø8 mm, Ø9mm in round , (6 x 32, 6 x 25 )in capsule |
| Standard Sizes | 150×150 mm to 1200×600 mm |
| Custom Sizes | Available |
| Mounting | Wall, Ceiling, Duct |
| Damper Option | Opposed Blade Damper (OBD) (optional) |
| Finish | Powder Coated / Anodized |
Applications
- Offices , Hospitals , Laboratories, Clean Rooms
- Hotels , Shopping Malls, Residential Buildings
