Product Description

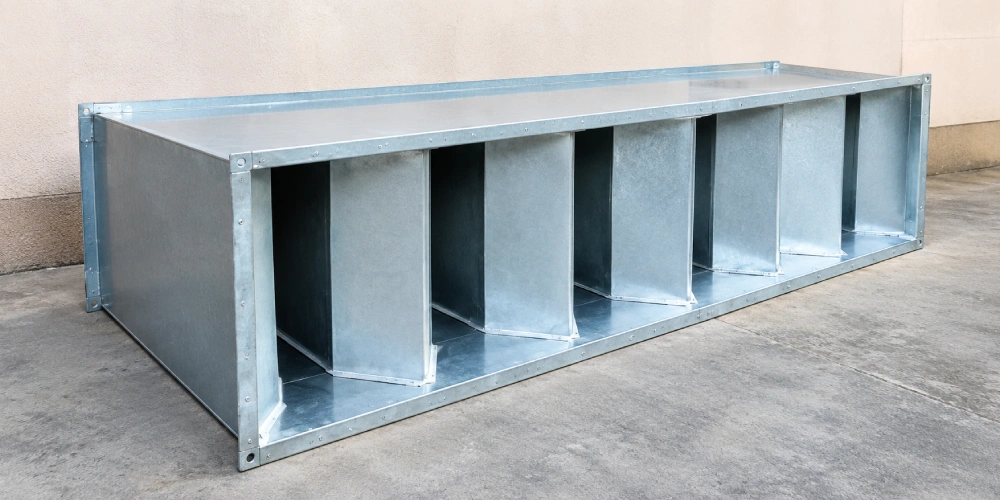

The GI Sound Attenuator (Duct Silencer) is designed to reduce noise generated by HVAC equipment such as air handling units (AHUs), fans, blowers, and ventilation systems while maintaining efficient airflow. It consists of a galvanized iron casing with internally mounted acoustic splitter pods filled with non-combustible sound-absorbing insulation protected by a perforated metal liner. The attenuator effectively minimizes regenerated and transmitted noise without significantly increasing pressure loss.
Construction Details
| Parameter | Specification |
|---|---|
| Casing Material | Galvanized Iron (GI) Sheet |
| Casing Thickness | 1.0 mm as Standard / Others as Optional |
| Splitter Material | GI Sheet |
| Splitter Thickness | 0.6 mm as Standard |
| Splitter / Baffles Size | 100 mm as Standard |
| Acoustic Insulation | 48–64 kg/m³ Glass Wool / Rock Wool |
| Insulation Protection | Black Tissue / Glass Tissue with Perforated Metal Facing |
| Perforated Sheet | Aluminium 0.7 mm Thick Perforated Sheet with Ø3.5 mm Holes |
| Flanges | TDF Flange as Standard |
| Sizes | Custom Sizes Available |
| Finish | Pre-Galvanized Finish |
